High-performance fiber optic products and fiber optic connectors
Diamond's excellent reputation as a manufacturer and assembler of high-performance and reliable fiber optic components and customized fiber optic products is no coincidence. We have been a trusted partner for fiber optic technology for many years and work together with our customers to develop solutions for a wide range of projects in industry, telecommunications, medicine, military, and aerospace.
Diamond's excellent reputation as a manufacturer and assembler of high-performance and reliable fiber optic components and customized fiber optic products is no coincidence. We have been a trusted partner for fiber optic technology for many years and work together with our customers to develop solutions for a wide range of projects in industry, telecommunications, medicine, military, and aerospace.
LWL products since 1979 - striving for progress
In 1979, Diamond developed its first connector, which already used a two-component ferrule and a micromanipulator to center the fiber core in the connector. As a result, we achieved a very low insertion loss (IL) even back then. Later, Diamond introduced the first push-pull connector with an integrated dust cap: the famous E-2000®. Further innovations and developments were not long in coming: 100% quality control, Active Core Alignment, material optimization, a maximum insertion loss (IL) of 0.1 dB, a minimum return loss (RL) of 85 dB, high-power connectors up to 16 watts, polarization-maintaining connectors, multi-fiber connectors and customized connectors are among the long list of innovations from Diamond.
The technology behind the fiber optic product
The composite ferrule is the basis of all Diamond SA plugs - all our technologies are based on it. We also use the highest quality materials such as titanium. Our special ferrules are made of technical ceramic of the highest quality. Our products reflect our quality standards and convince with both durability and a very high level of customer satisfaction. As a traditional Swiss company, we have built up many years of experience and expertise and know how to put this into practice.

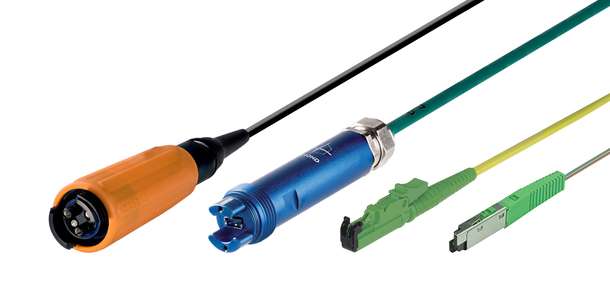

Fiber optic connector overview table - most important features
In the following table you can see the most important specifications of our fiber optic products from the "Connectors" section. Click on the names of the fiber optic connectors to go to the respective product page.
Type | Automatic Protection Shutter | Locking Mechanism | Body Material | No of Channels | IP Protection |
---|---|---|---|---|---|
E-2000® | Yes | Push-Pull | Plastic | 1 | |
F-3000® (LC) | Yes | Push-Pull | Plastic | 1 | |
AVIM® | Yes | Thread-lock | Metal | 1 | |
Mini AVIM® | Thread-lock | Metal | 1 | ||
Midi AVIM® | Thread-lock | Metal | 1 | ||
Micro AVIM® | Clip-on system | Metal | 1 | ||
DMI | Clip-on system | Metal | 1 | ||
F-SMA | Thread-lock | Metal | 1 | ||
DiaLink | Push-pull | Plastic | 1 | ||
SC | Push-pull | Metal | 1 | ||
FC | Thread-lock | Metal / Plastic | 1 | ||
MFS | Push-pull | Metal / Plastic | 12 - 24 | ||
HE-2000® | Yes | Push-pull | Plastic | 4 | IP 67 |
MIL-83526 DM4 | Thread-lock | Metal / Plastic | 4 | IP 68 | |
MIL-38999 DM4 | Thread-lock | Metal | 4 - 12 | IP 67 | |
X-Beam | Thread-lock | Metal / Plastic | 1 4 | IP 68 | |
revos E-2000® | Yes | Push-pull | Metal | 2 | IP 65 |
DiaFlex | Thead-lock | Metal | 12 - 24 | IP 68 |
